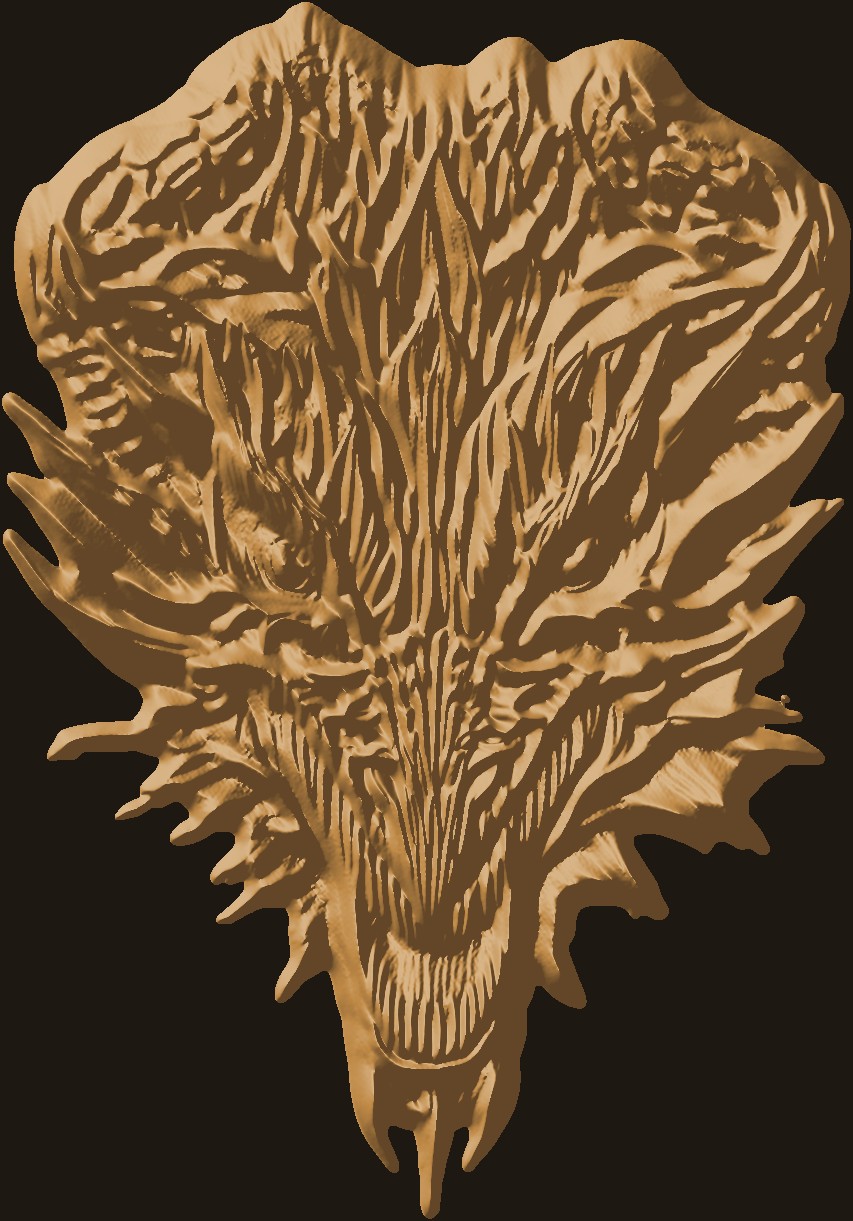

Dragon Head Relief
Fierce fantasy dragon head with curved horns, angular scales, and bared fangs. Clean depth gradients ideal for CNC relief carving in wood or soft materials.
How to Use This Heightmap
- 1. Download the heightmap. Click the download button to get the 16-bit PNG file.
- 2. Import into your CAM software. VCarve, Carveco, and Fusion 360 all support heightmap imports. Look for "Import Heightmap" or "Model From Bitmap".
- 3. Scale to your stock. The heightmap scales proportionally. Set your desired width and height, and the relief depth will adjust automatically.
- 4. Generate toolpaths. Use a ball-nose bit for best results. Start with conservative settings and test on scrap first.
What's a heightmap? It's a grayscale image where brightness represents depth: white is high, black is low. Your CAM software reads this image and creates a 3D toolpath. This file is a 16-bit PNG for maximum detail.
Details
- Dimensions
- 853 × 1221 px
- File Format
- 16-bit PNG heightmap
- File Size
- 1001 KB
- License
- CC BY-NC-ND 4.0. Free for personal use
- Creator
- CNC Dad
