CNC Machine Database
Select your machine to get pre-configured feeds and speeds. No manual spec entry. We've done the research.

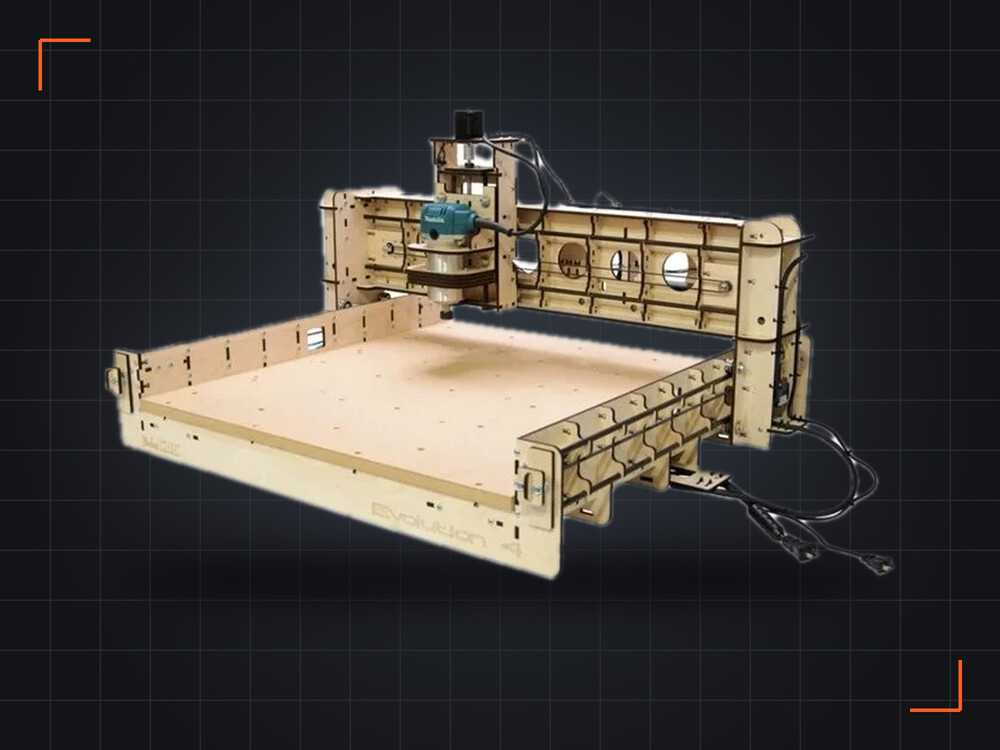

Bob's CNC Evolution 4 24" x 24" (various Z-heights available) · Lead screw (Acme threaded rod) · DeWalt DW611 router or similar trim router mount

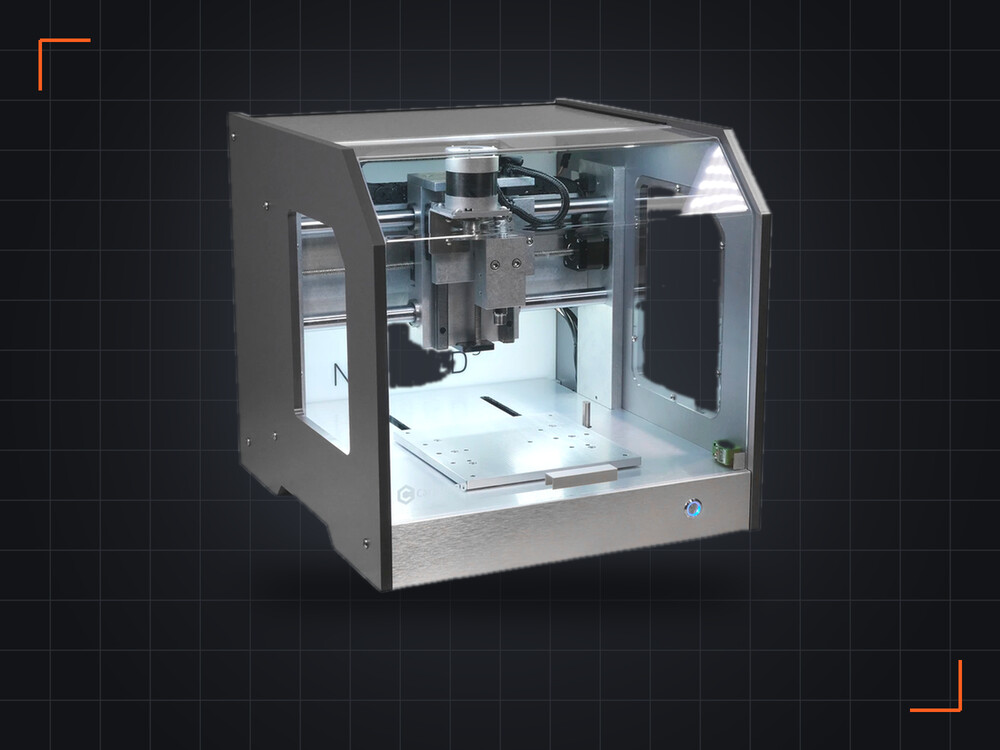

Carbide 3D Nomad 3 8" x 8" x 3" (203 x 203 x 76mm) · Lead screws with anti-backlash nuts on every axis · Custom 130W brushless DC spindle (integrated)

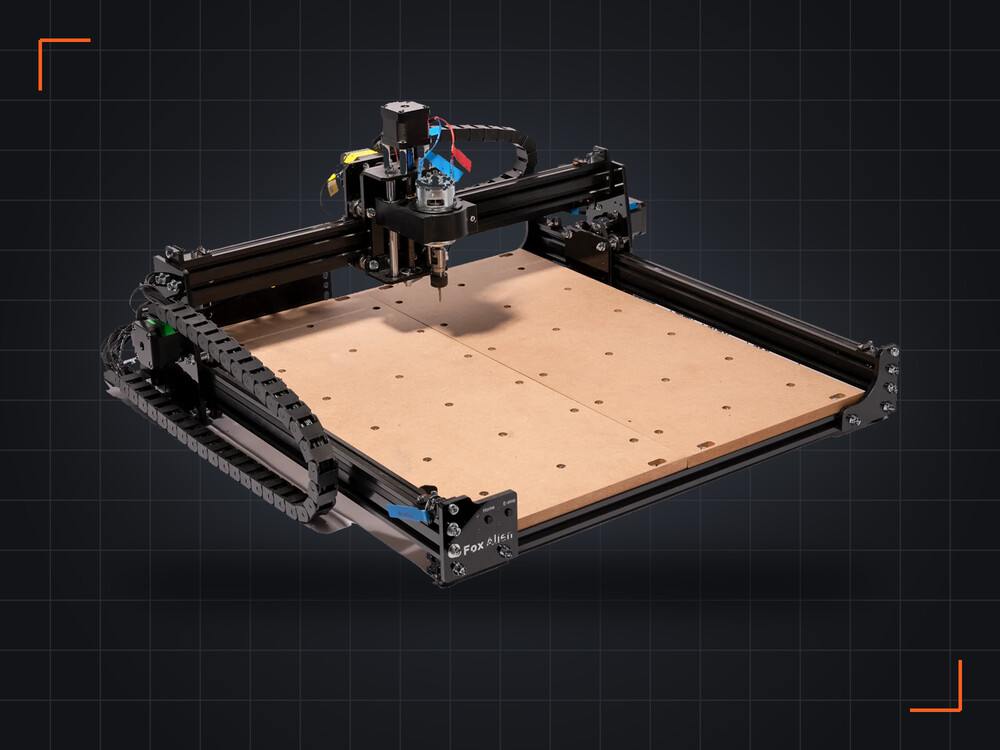

FoxAlien Masuter ~16" x 16" (approx; verify current specs) · Lead screws · Included spindle or router mount

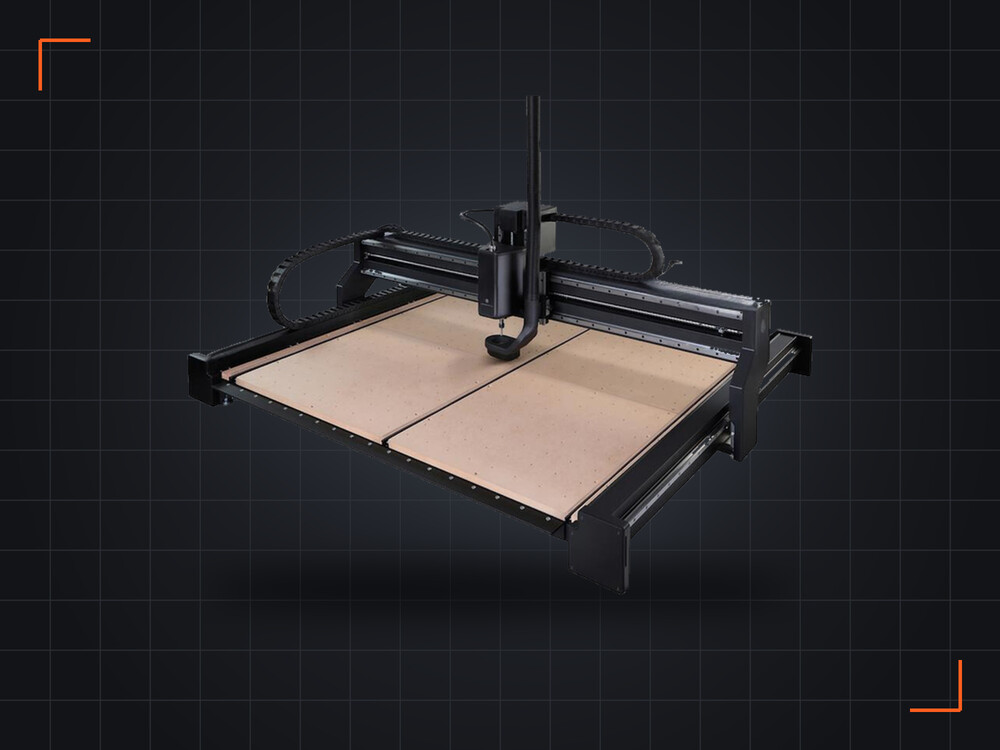

Inventables X-Carve Pro ~48" x 48" (estimated; verify current specs) · Ball screws or precision lead screws (upgraded from belt) · Integrated spindle (likely included or available)

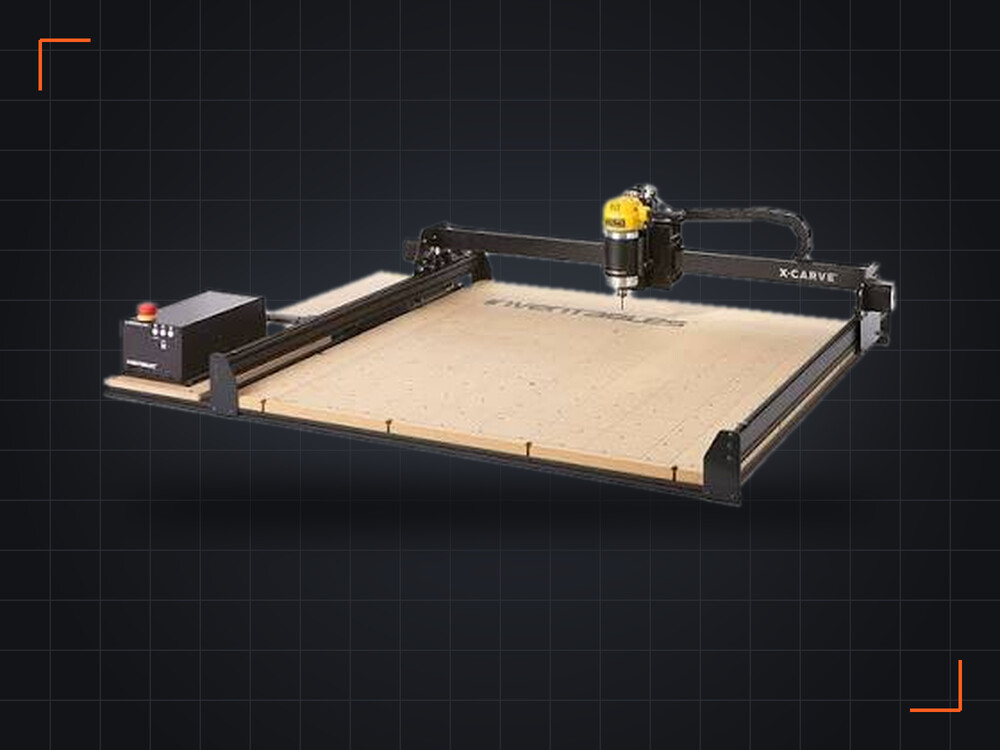

Inventables X-Carve 29.5" x 29.5" x 4.5" (1000mm version), smaller 750mm also available · Belt drive · DeWalt 611 spindle and mount included

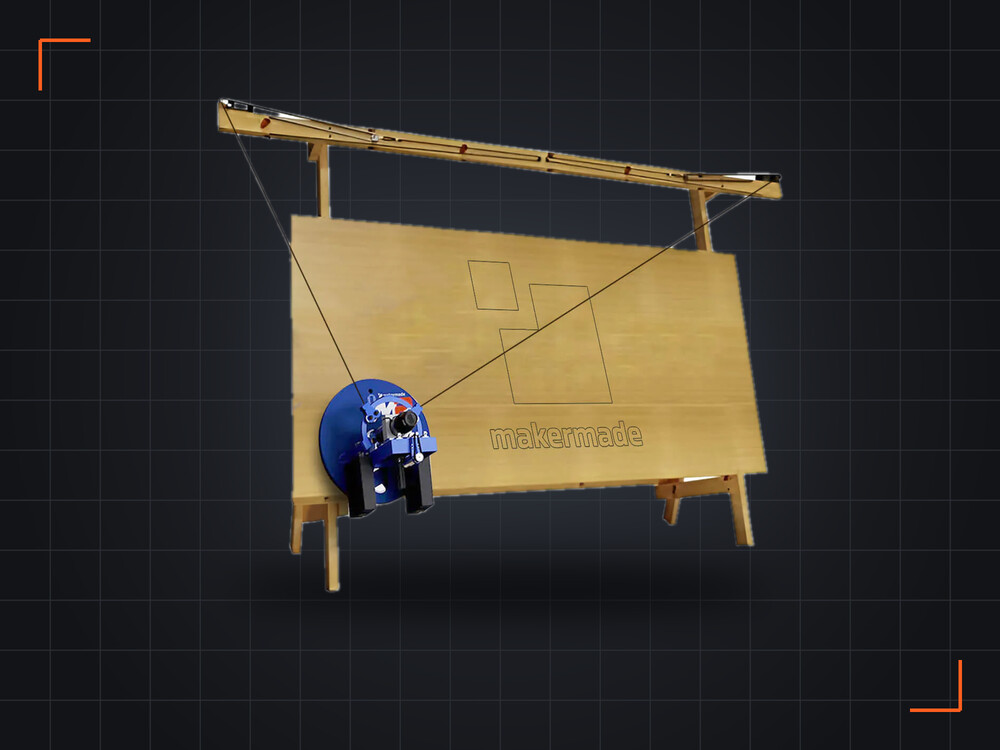

MakerMade M2 CNC 4' x 8' (3.8" depth) · Chain and sled system (improved from Maslow) · User-supplied router (not included)

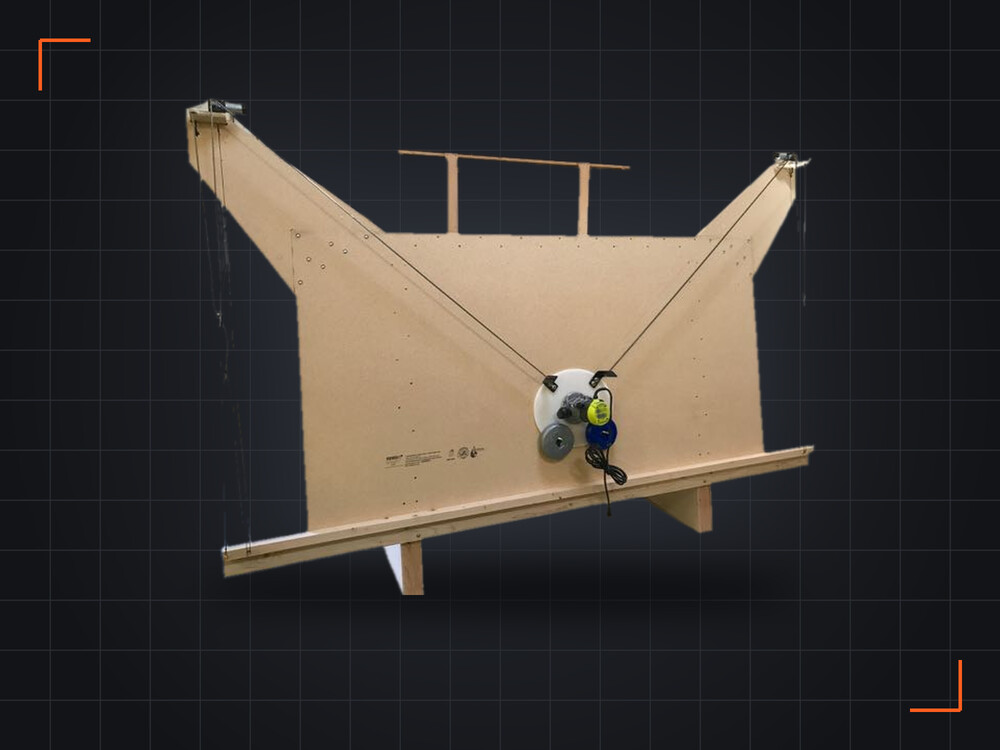

Maslow CNC 4' x 8' (full sheet cutting capability) · Chain and sled system (unique vertical design) · User-supplied router (typically trim router)

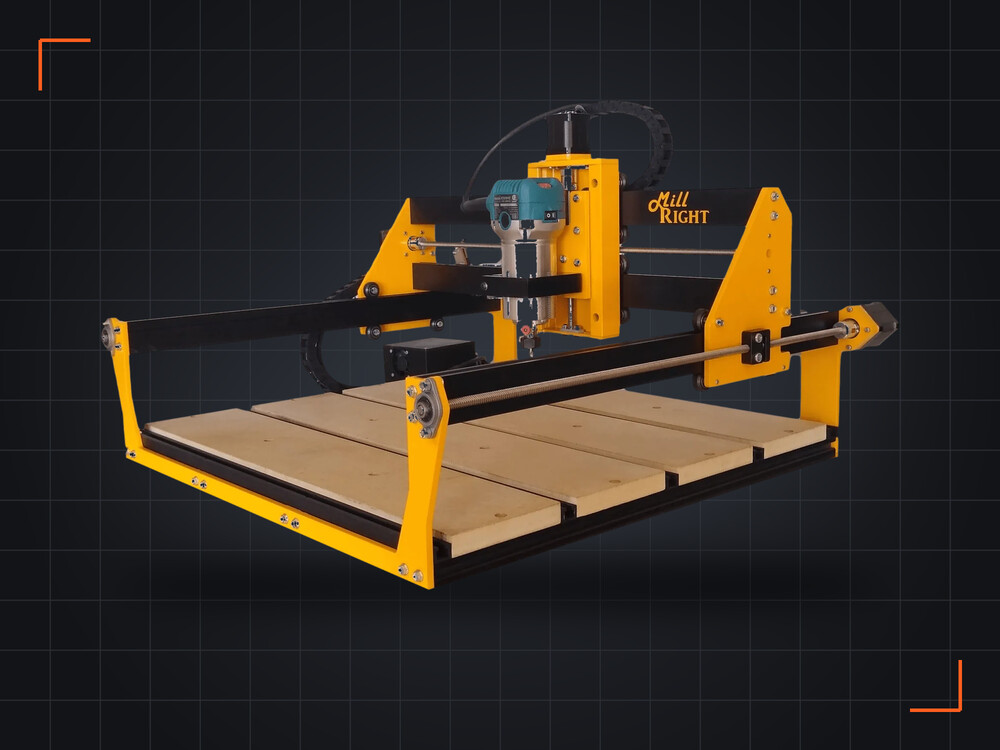

MillRight CNC Carve King 25" x 25" x 6.5" (approx) · Lead screws · Makita RT0701 or DeWalt 611 mount

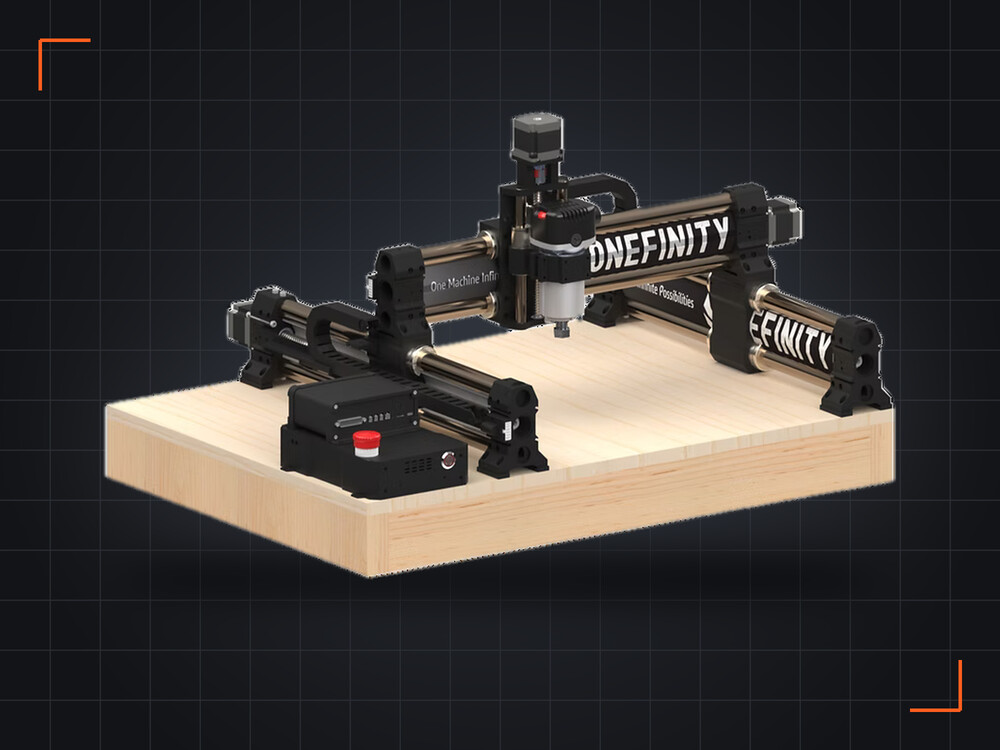

OneFinity Apprentice 16.5×16.5×5.25" (423×423×114mm) · Ball screws on all axes (1610 on X/Y, 1004 on Z) · User-supplied 65mm router or spindle (Makita RT0701C or OneFinity Redline Spindle recommended)

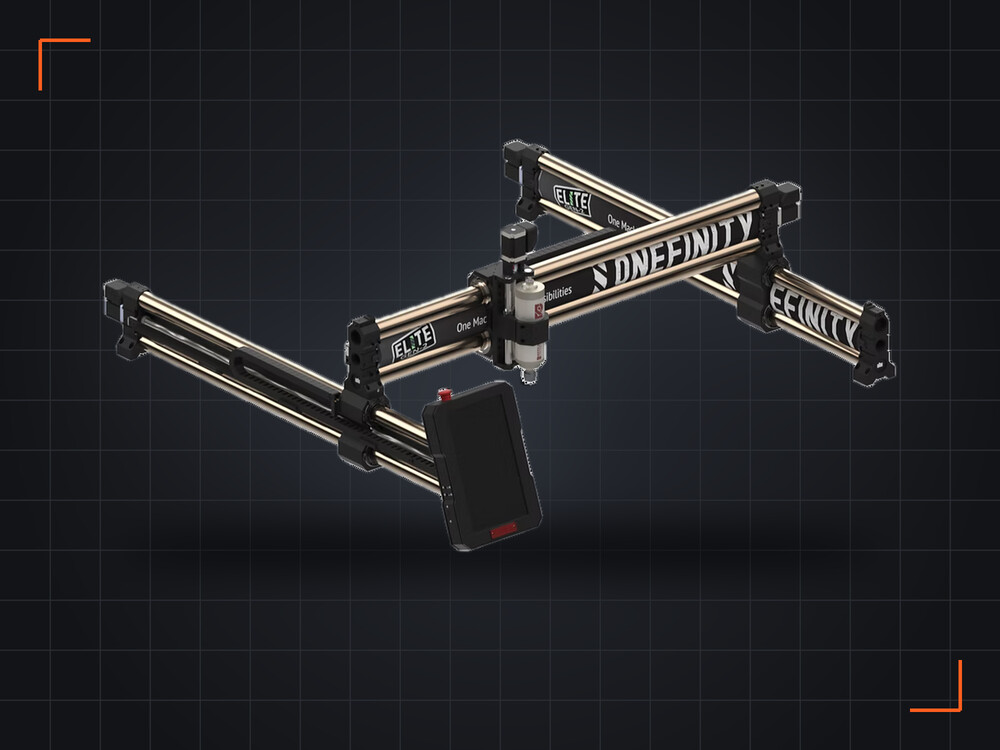

OneFinity Elite Gen 2 Series 33" x 33", 33" x 49", or 49" x 49" (three size variants) · Precision ball screws on all axes · 80mm spindle mount (spindle sold separately)

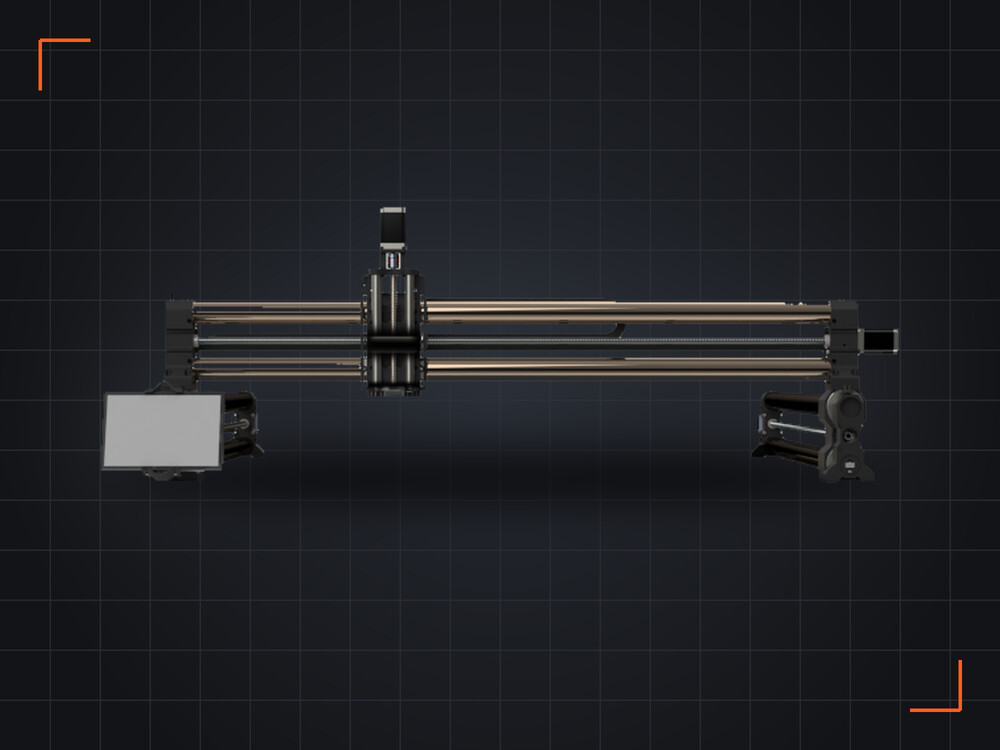

OneFinity Foreman 49" x 49" (largest OneFinity variant) · Ball screws · User-supplied (80mm spindle mount)

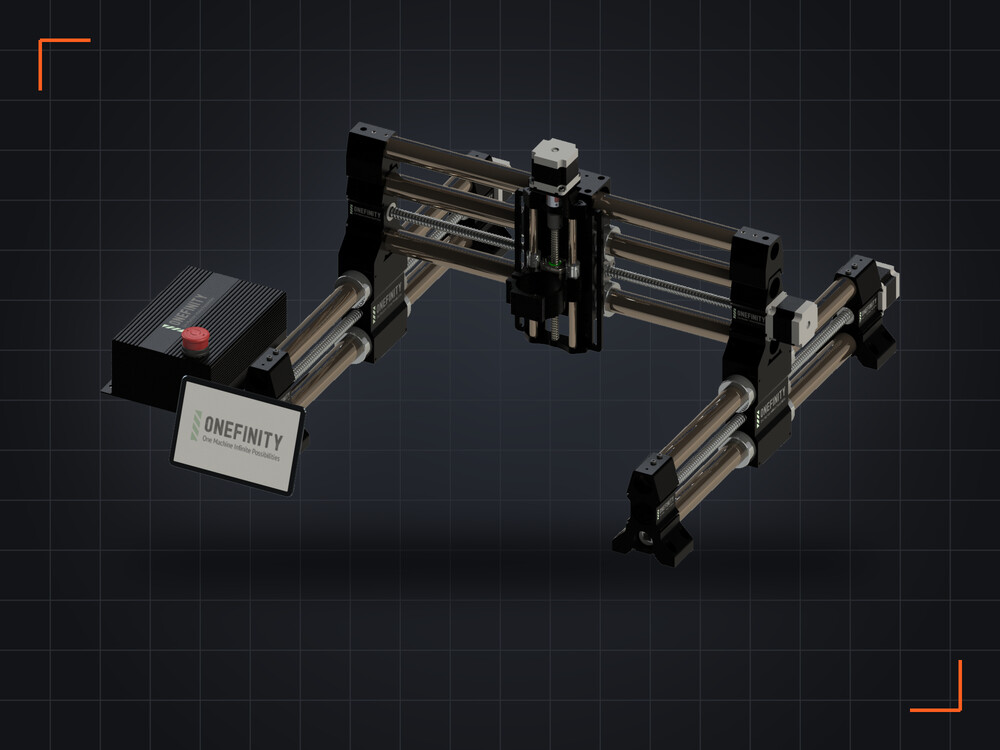

OneFinity Machinist (Gen 1) 33" x 33" (also available in 33x49 Woodworker variant) · Ball screws · User-supplied (80mm spindle mount)

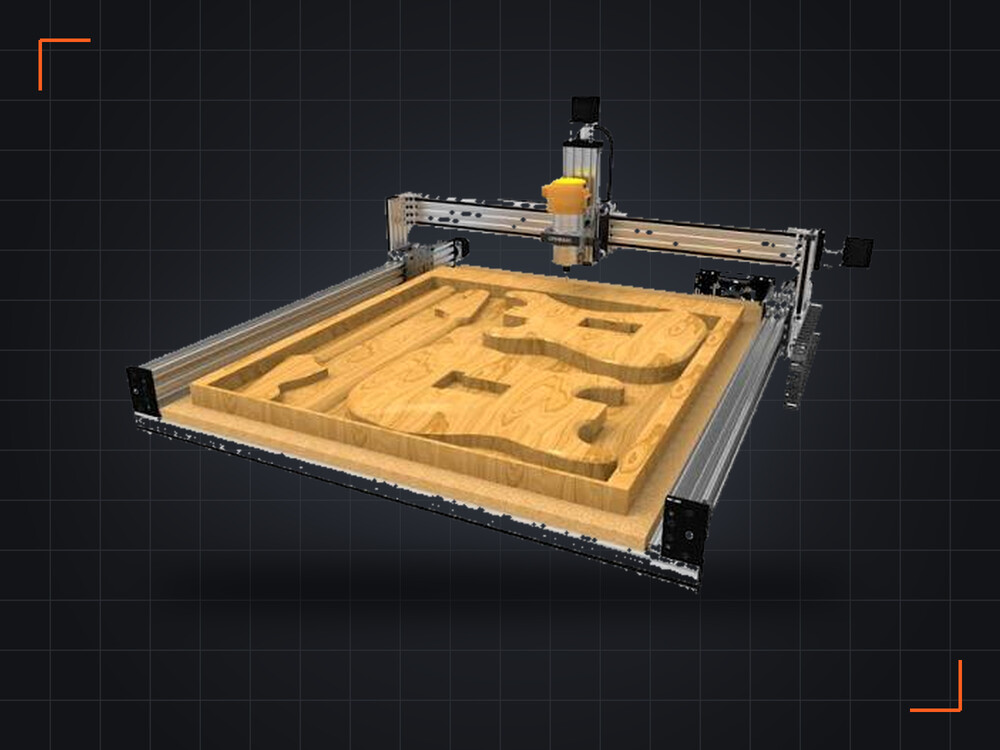

OpenBuilds LEAD CNC 1010 40" x 40" (1010 model), also available in smaller sizes · Lead screws with tension system · User-supplied router or spindle

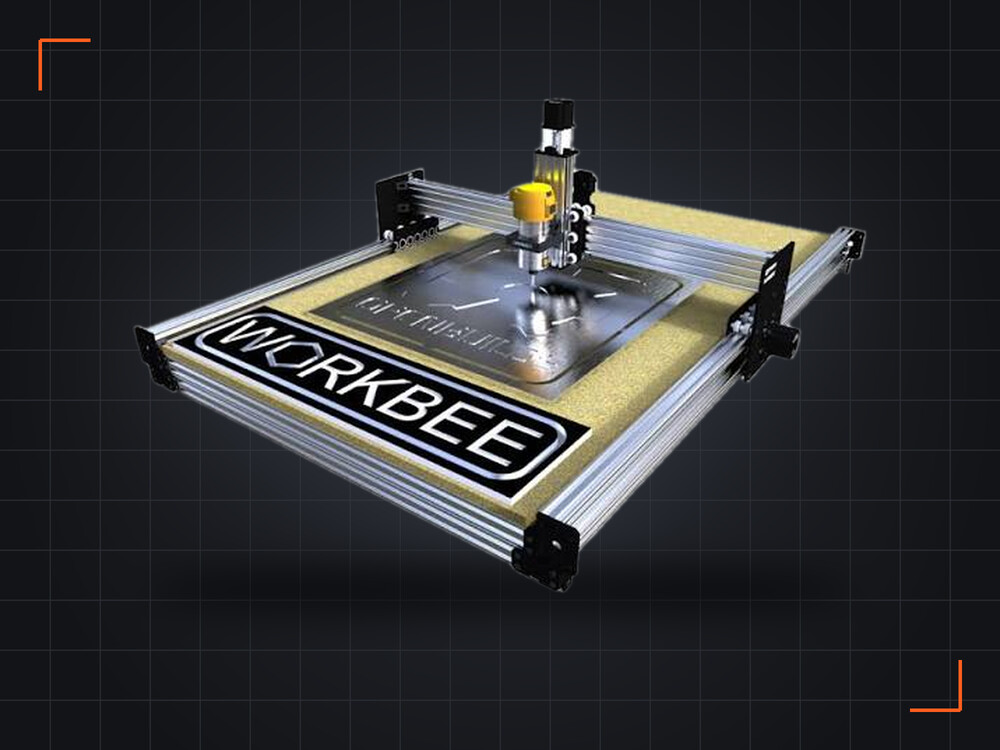

OpenBuilds WorkBee Various sizes (1010, 1510 common; customizable) · Lead screws (upgradeable to ball screws) · User-supplied (typically trim router or spindle)

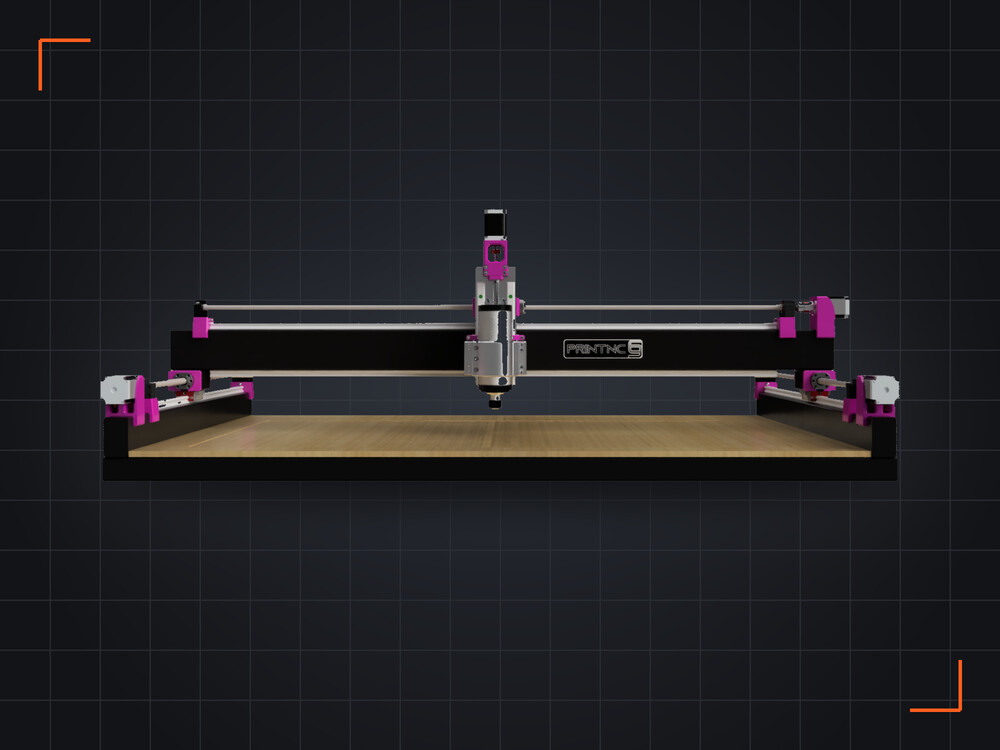

PrintNC Customizable (commonly 24" x 24" to 48" x 48"+) · Ball screws · User-supplied spindle (typically 1.5kW-2.2kW VFD spindle)

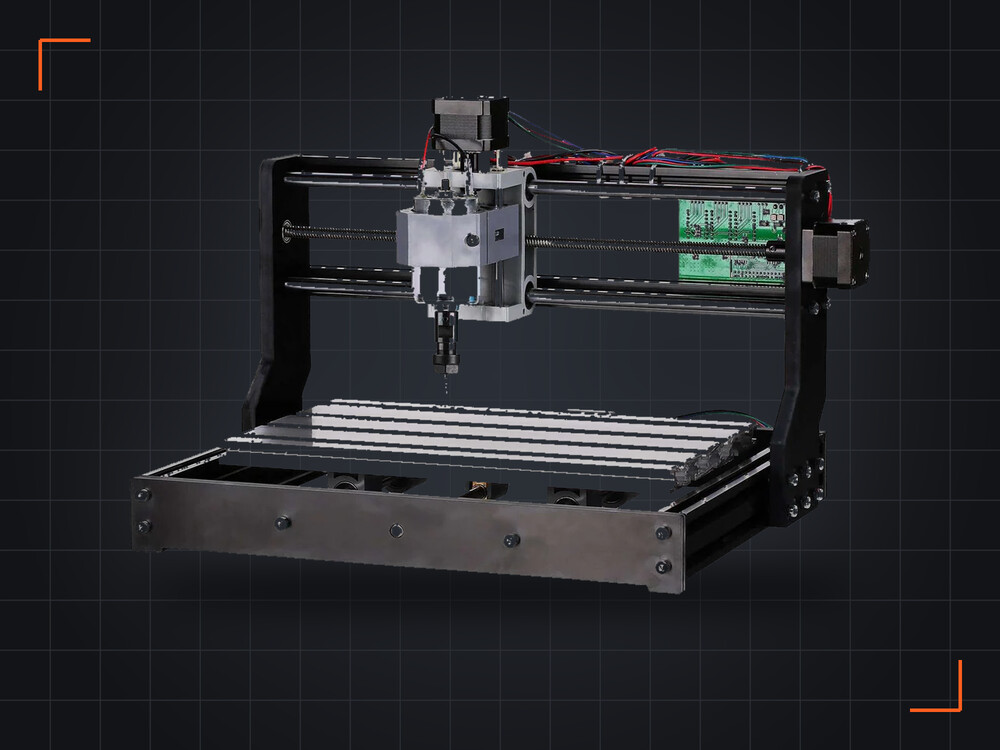

SainSmart Genmitsu 3018 Pro 300 x 180 x 45 mm (11.8" x 7.1" x 1.8") · Lead screw · 775 motor spindle, 10,000 RPM, 120W max power

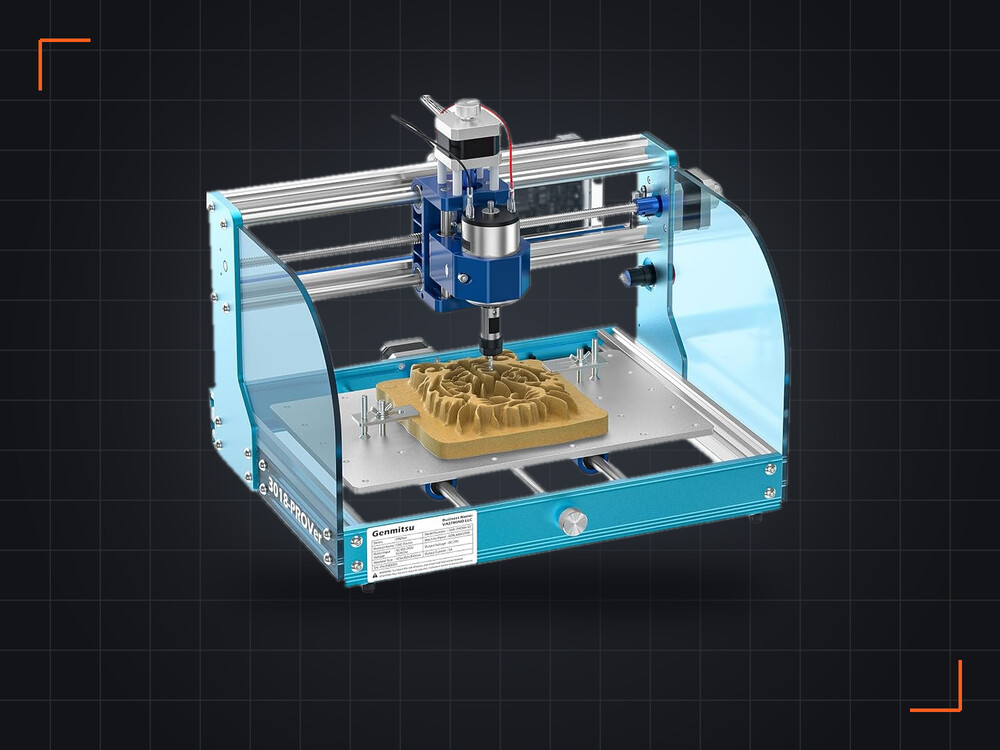

SainSmart Genmitsu 3018 PROVer 260 x 155 x 35 mm (10.2" x 6.1" x 1.4") · Lead screw · 775 motor, 10,000 RPM, 120W max power

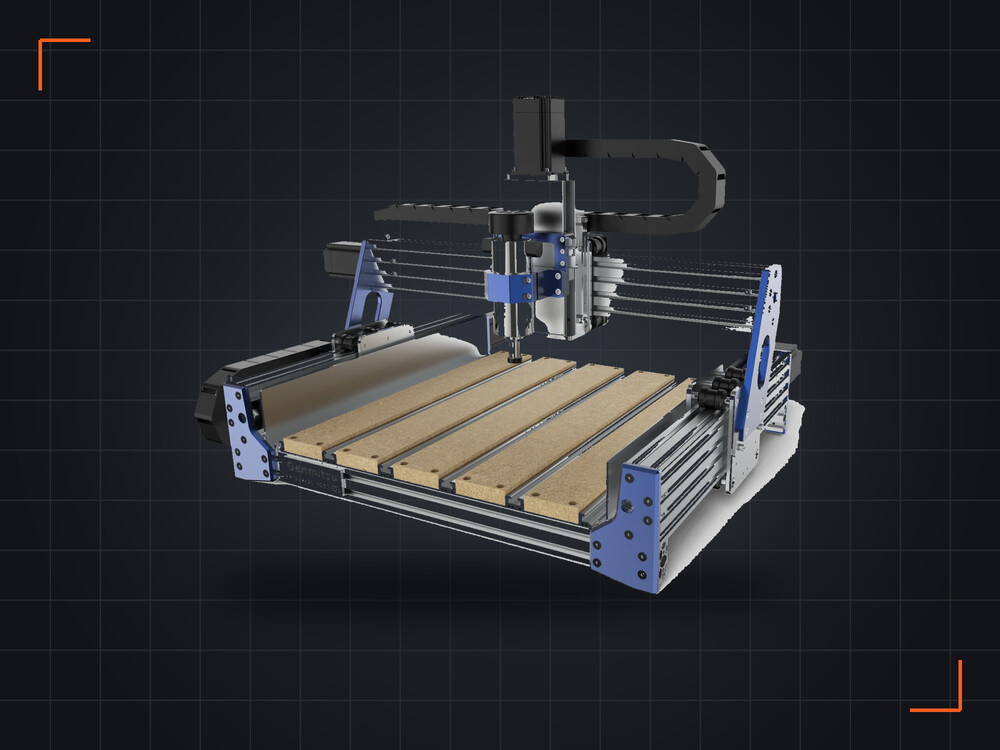

SainSmart Genmitsu PROVerXL 4030 400 x 300 x 110 mm (15.7" x 11.8" x 4.3") · Lead screw · Powerful spindle (upgraded from 3018 series)

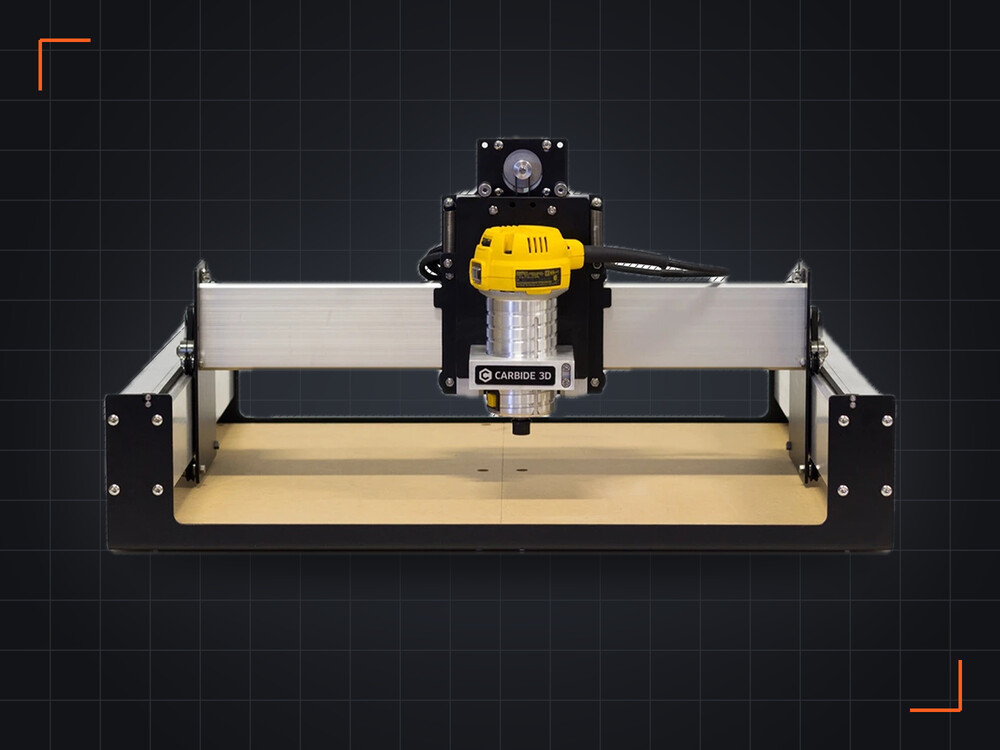

Shapeoko 3 Various sizes (Standard, XL, XXL) · Belt drive (GT2 timing belts) · DeWalt DW611 or Makita RT0701 trim router

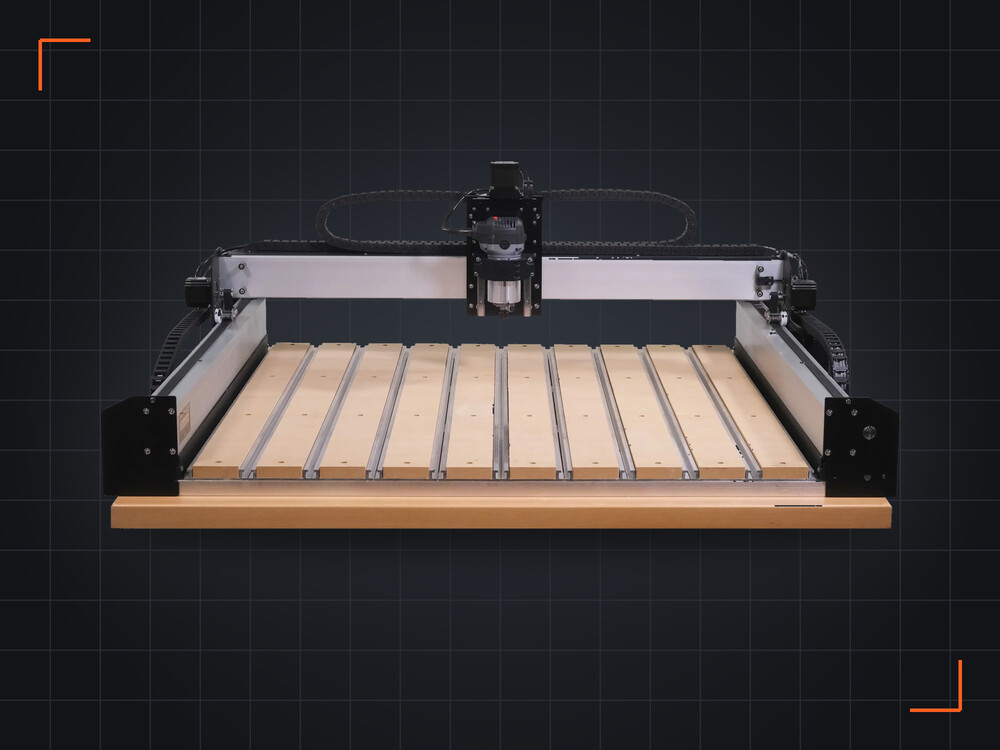

Shapeoko 4 / 5 Pro 17.5×17.5×4" (Standard), 33×17.5×4" (XL), 33×33×4" (XXL); larger on 5 Pro · Belt drive (15mm belts, 60% stiffer than previous 9mm) · User-supplied 65mm router (Carbide Compact Router or Makita RT0701C recommended, or 65mm VFD spindle)

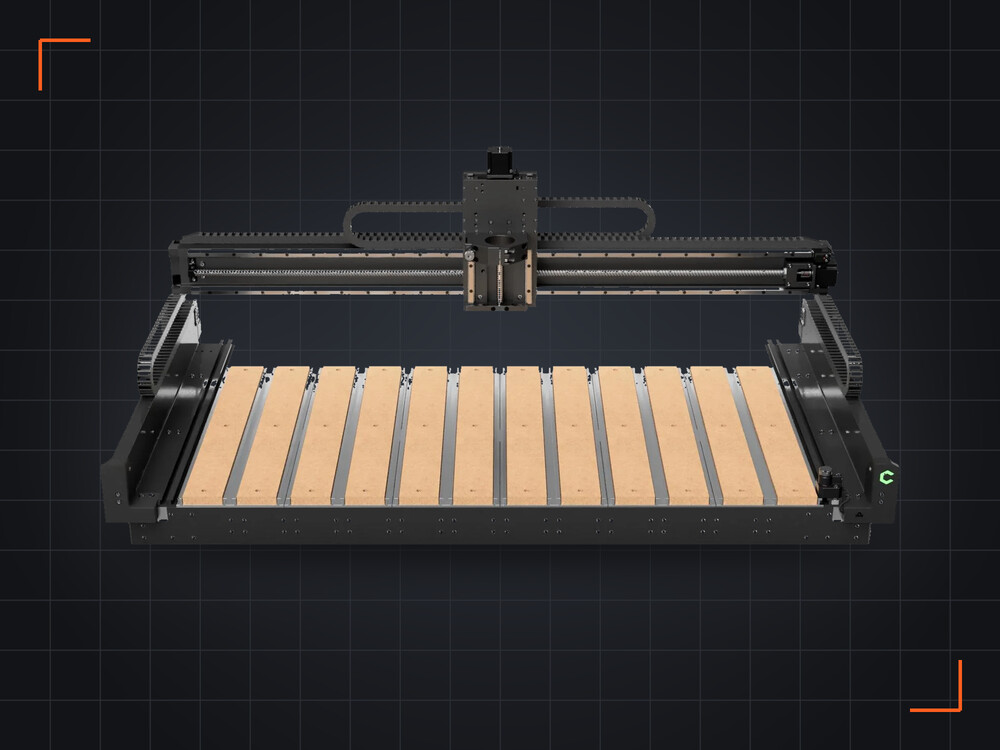

Shapeoko 5 Pro Available in Standard (18" x 18"), XL (33" x 33"), and XXL (33" x 48") · Belt drive (GT3 timing belts) · Makita RT0002 trim router or optional VFD spindle

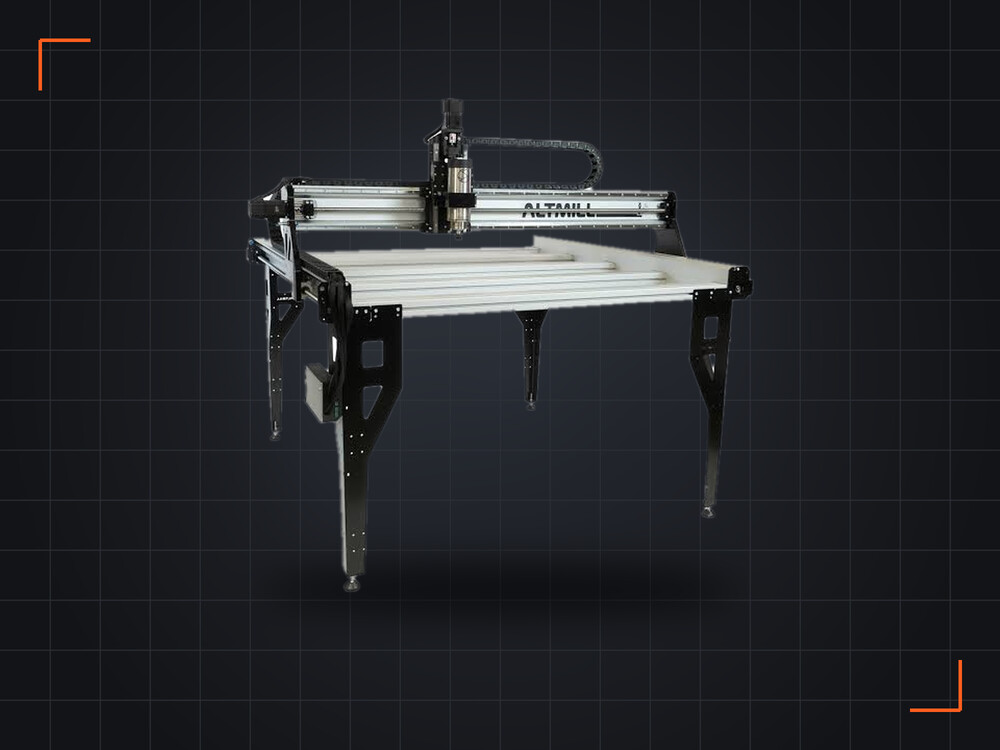

Sienci Labs AltMill MK2 4x4 49" x 49" x 5.5" (4x4), also available in 4x6 and 4x8 · Ball screws on all axes · 80mm spindle mount (spindle sold separately - 1.5kW, 2.2kW, or 2.2kW ATC options)

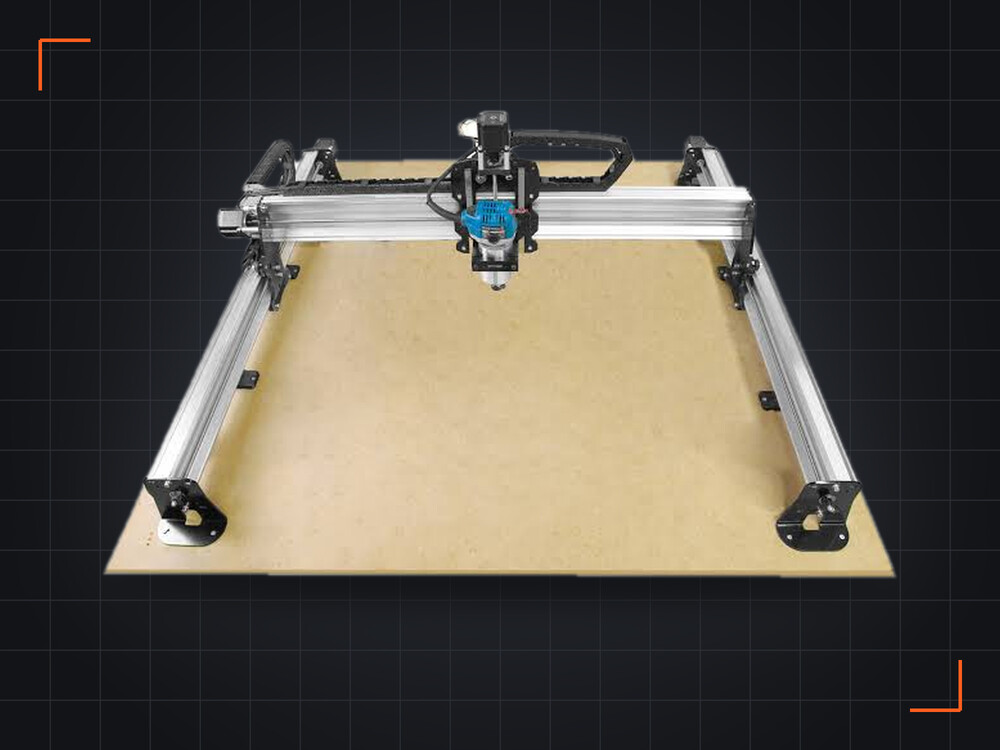

Sienci Labs LongMill MK2.5 12" x 30", 30" x 30", or 48" x 30" (three size variants) · ACME lead screws (anti-backlash nuts) · User-supplied router or spindle (65mm/80mm mounts available)

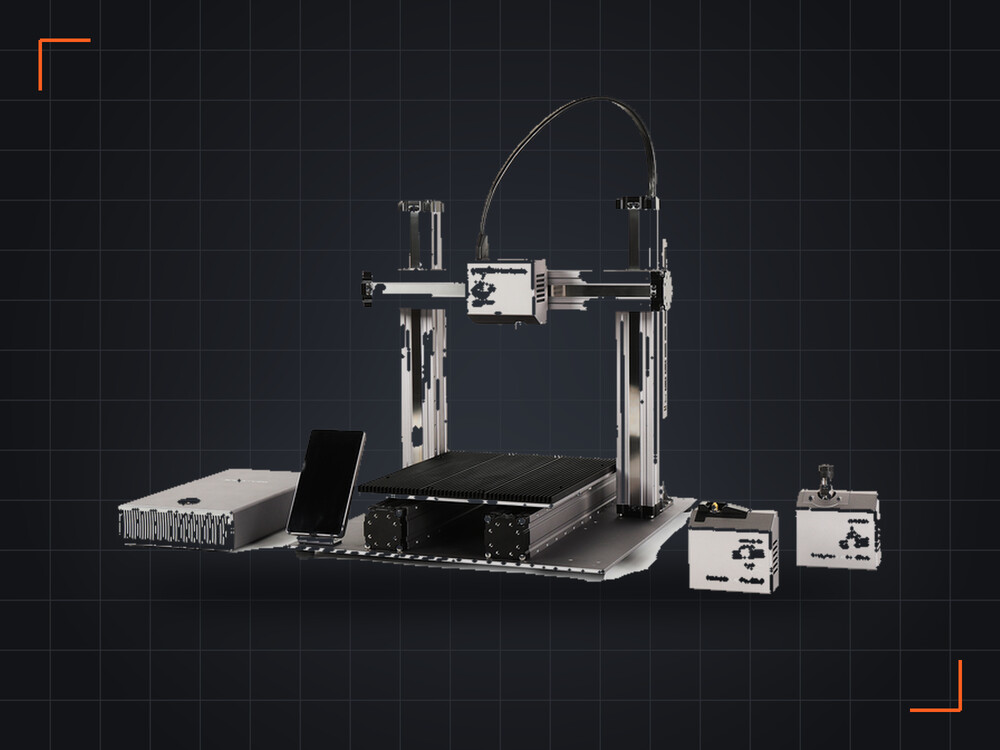

Snapmaker 2.0 250 x 250 x 250mm (A250T) or 350 x 350 x 350mm (A350T) for 3D printing; CNC work area similar · Lead screws · CNC toolhead module with ER11 collet
